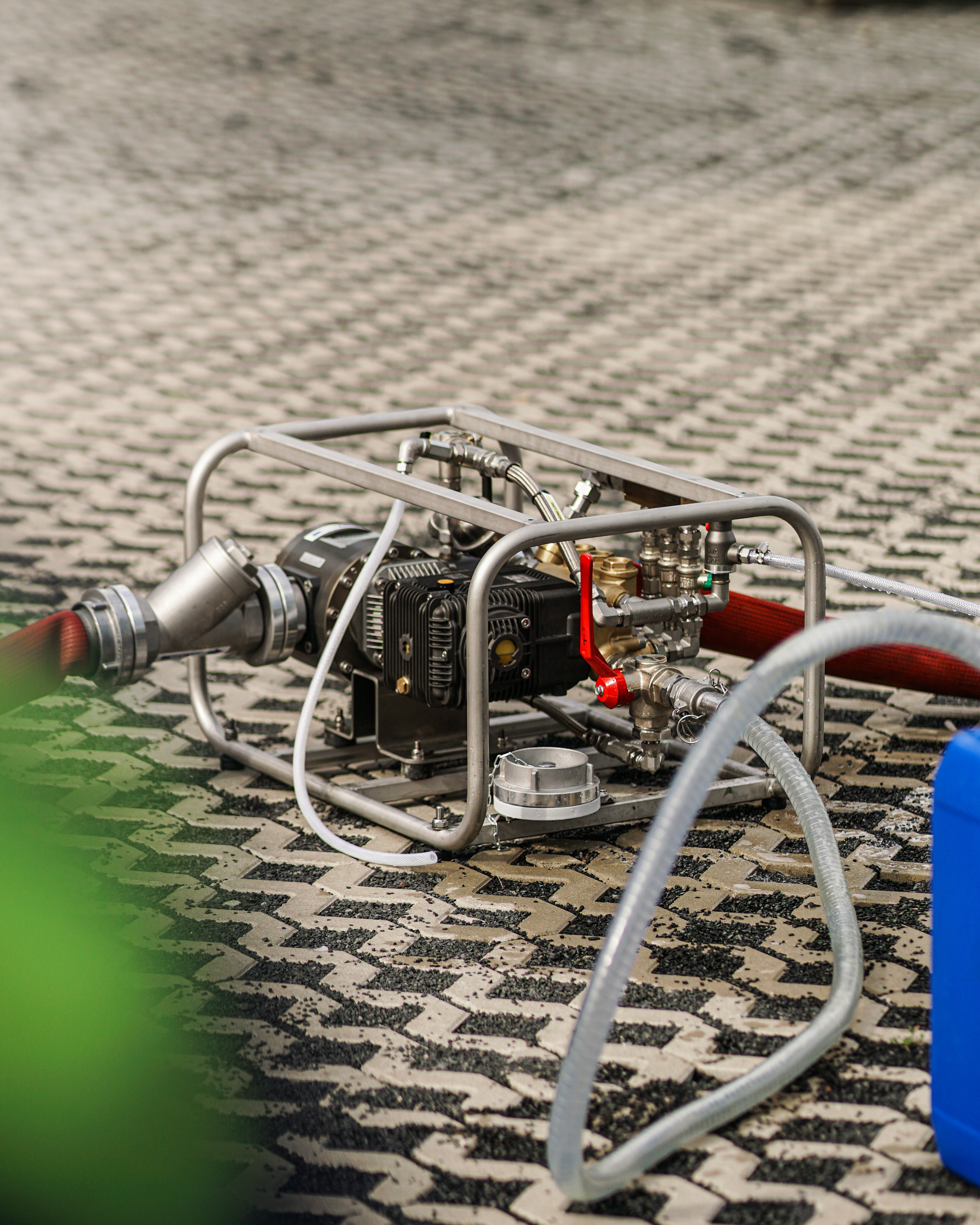

FIREMIKS Mobile unit is mainly used by fire & rescue services as a handy complement to fixed concentrate proportioning systems. Just connect FIREMIKS to the fire hoses and insert the suction tube into a concentrate tank, and it is ready to be used! Equipped as standard with an Automatic air relief valve to speed up the suction from the pump. On units provided with a gear pump (- GP) the suction from the unit is automatic. The extinguishing media concentrate needs to be in line with the dosing pump on our mobile models with a piston pump (- PP). Smaller sizes are carried by using the handle, larger sizes are placed on a wheeled frame or trailer to ensure easy movement.

Bildserie-3_Mobile_broschyr-OK-1024x261

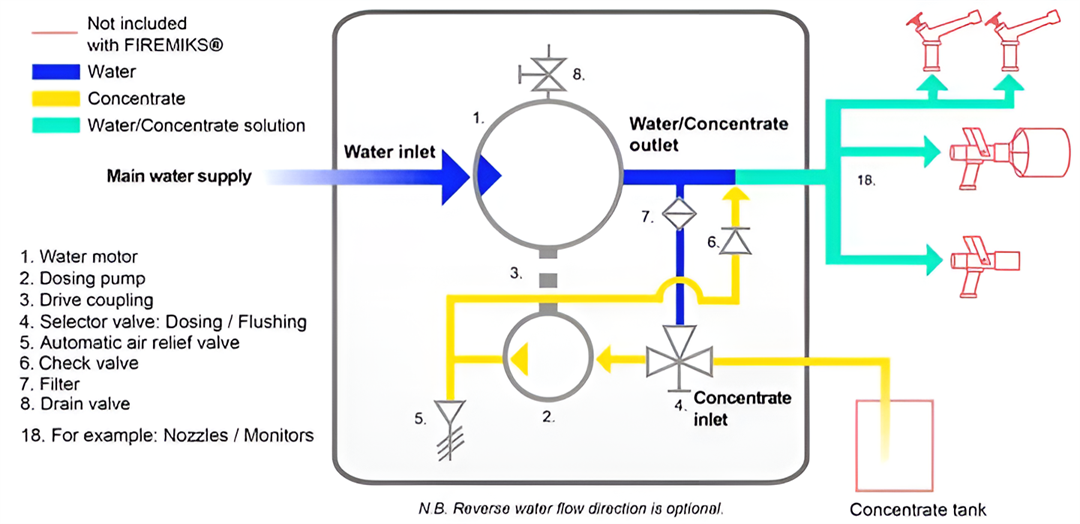

FLOW CHART - MOBILE UNIT

This Flow chart shows the principal set up of a FIREMIKS Mobile unit.

FLOW-CHART-FIREMIKS-Mobile-broschyr-OK-1024x496

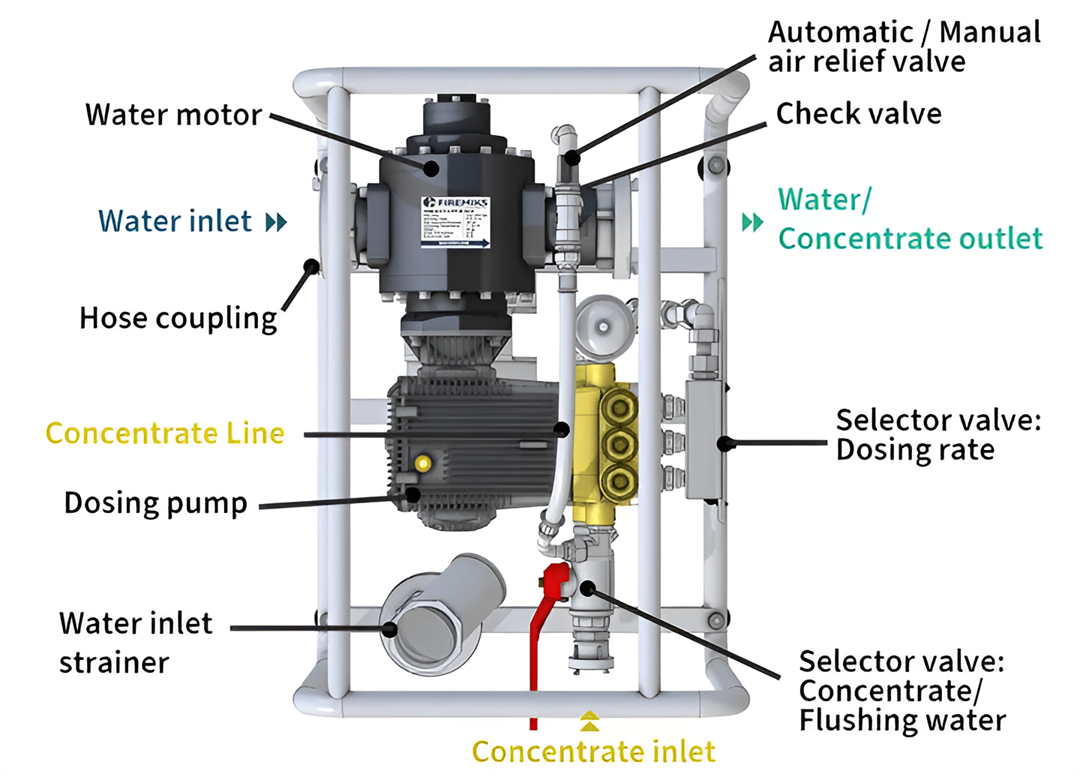

PARTS DESCRIPTION

original_mobile-1024x536

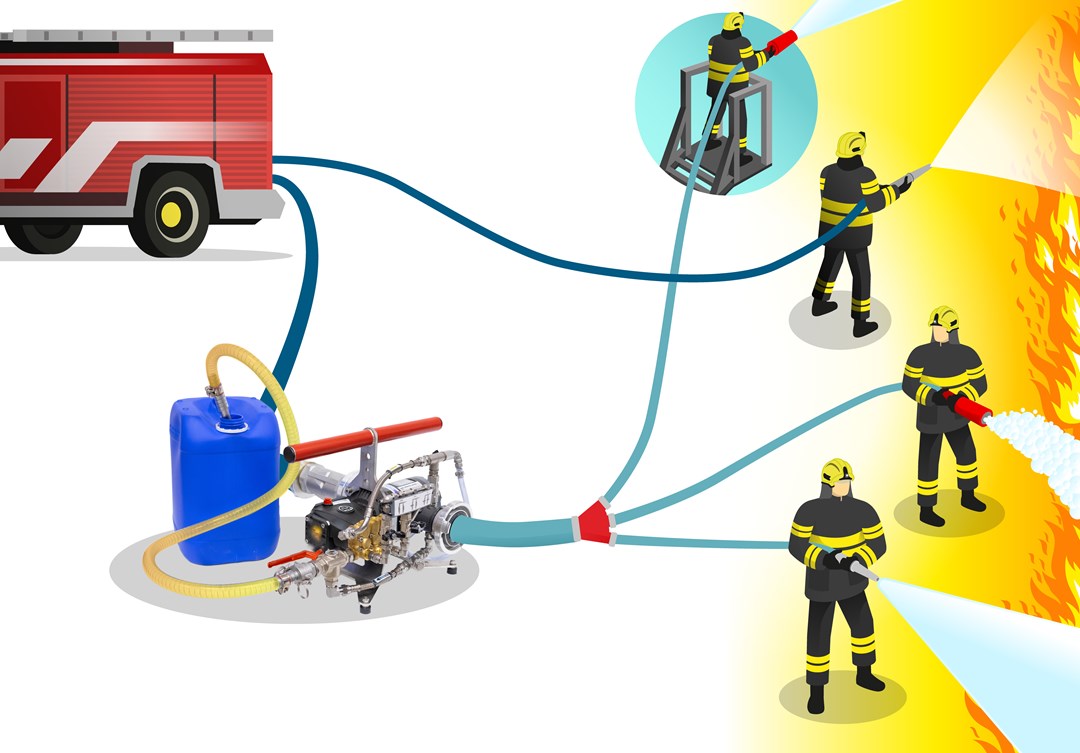

ONE FIREMIKS – SEVERAL NOZZLES!

With FIREMIKS, fire & rescue services can count on a very flexible system that easily adapts to different fire-fighting situations. You may use several different nozzles at the same time, positioned at different lengths and different heights from the FIREMIKS.
You may add or remove hoses, vary the hose diameter and open or close nozzles independently. It does not affect the quality of the admixture as long as the min and max flows of the FIREMIKS unit are followed.

Mobile-use-1024x716
